수직형 머시닝센터

다양한 기종으로, 모든 산업을 향한 최적의 기계를 제공합니다.


기존 솔루션을 뛰어넘는 솔루션

마키노의 수직형 머시닝센터는 뛰어난 표면조도를 실현하는 높은 제어 기술, 기계의 안정성 및 주축 성능을 특징으로 더 빠른 가공, 더 적은 시간, 더 낮은 비용으로 더 까다로운 요구를 만족시키기 위한 최적의 솔루션을 제공합니다.

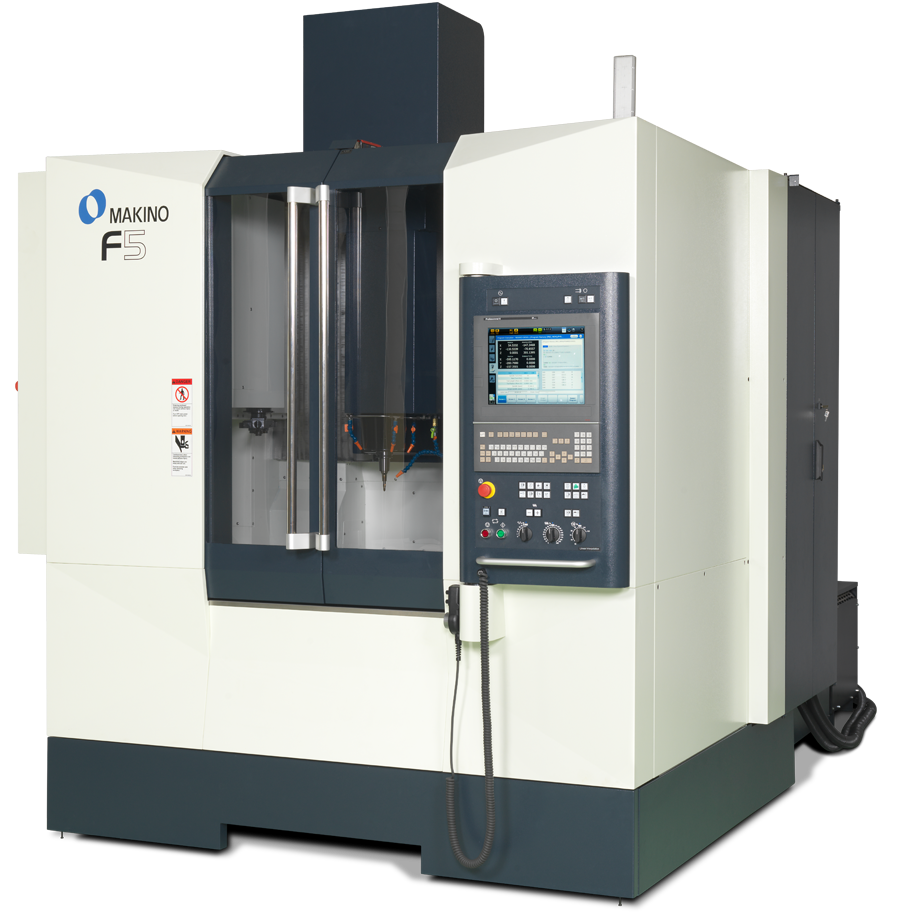

F-Series

Table:

850 x 500 mm

X:

650 mm

Y:

500 mm

Z:

450 mm

Rapid Traverse:

20,000 mm/min

Maximum Workpiece:

650 x 500 x 450 mm

Spindle Taper:

HSK-A63


Table:

1,000 x 500 mm

X:

900 mm

Y:

500 mm

Z:

450 mm

Rapid Traverse:

20,000 mm/min

Maximum Workpiece:

1,000 x 500 x 450 mm

Spindle Taper:

HSK-A63


Table:

1,550 x 800 mm

X:

1,300 mm

Y:

800 mm

Z:

650 mm

Rapid Traverse:

24,000 mm/min

Maximum Workpiece:

1,550 x 800 x 550 mm

Spindle Taper:

BT50 (Opt. HSK-A100)


Table:

1,850 x 800 mm

X:

1,850 mm

Y:

800 mm

Z:

550 mm

Rapid Traverse:

24,000 mm/min

Maximum Workpiece:

1,850 x 800 x 550 mm

Spindle Taper:

BT50 (Opt. HSK-A100)


V-Series

Table:

1,400 x 700 mm

X:

1,200 mm

Y:

700 mm

Z:

450 mm

Rapid Traverse:

20,000 mm/min

Maximum Workpiece:

1,400 x 700 x 250 mm

Spindle Taper:

HSK-A63 (Opt. HSK-F63)


Table:

450 x 350 mm

X:

320 mm

Y:

280 mm

Z:

300 mm

Rapid Traverse:

20,000 mm/min

Maximum Workpiece:

450 x 475 x 200 mm

Spindle Taper:

HSK-E32


Table:

750 x 450 mm

X:

650 mm

Y:

450 mm

Z:

350 mm

Rapid Traverse:

20,000 mm/min

Maximum Workpiece:

750 x 635 x 250 mm

Spindle Taper:

BT40 (Opt. HSK-63)


Table:

1,050 x 550 mm

X:

900 mm

Y:

550 mm

Z:

450 mm

Rapid Traverse:

20,000 mm/min

Maximum Workpiece:

1,050 x 720 x 450 mm

Spindle Taper:

HSK-A63 (Opt. HSK-F63)


Table:

1,400 x 700 mm

X:

1,200 mm

Y:

700 mm

Z:

650 mm

Rapid Traverse:

20,000 mm/min

Maximum Workpiece:

1,400 x 700 x 550 mm

Spindle Taper:

BT40 (Opt. HSK-63)


Table:

1,650 x 700 mm

X:

1,500 mm

Y:

700 mm

Z:

650 mm

Rapid Traverse:

20,000 mm/min

Maximum Workpiece:

1,650 x 700 x 550 mm


Table:

1,800 x 1,000 mm

X:

1,500 mm

Y:

1,000 mm

Z:

800 mm

Rapid Traverse:

20,000 mm/min

Maximum Workpiece:

1800 x 1000 x 650 mm


Table:

2,300 x 1,000 mm

X:

2,000 mm

Y:

1,000 mm

Z:

650 mm

Rapid Traverse:

20,000 mm/min

Maximum Workpiece:

2,300 x 1,000 x 650


iQ-Series

Table:

600 x 400 mm

X:

400 mm

Y:

350 mm

Z:

200 mm

Rapid Traverse:

X/Y : 16,000 mm/min
Z : 8,000 mm/min

Maximum Workpiece:

600 x 580 x 190 mm

Spindle Taper:

HSK –- E32


Table:

800 x 500 mm

X:

600 mm

Y:

500 mm

Z:

300 mm

Rapid Traverse:

X/Y : 16,000 mm/min
Z : 8,000 mm/min

Maximum Workpiece:

755 x 500 x 300 mm

Spindle Taper:

HSK - E32


L2-Series

Table:

Ø 120 mm

X:

400 mm

Y:

300 mm

Z:

300 mm

Rapid Traverse:

48 m/min

Maximum Workpiece:

600 x 400 x 500 mm


Table:

600 x 400 mm

X:

400 mm

Y:

300 mm

Z:

300 mm

Rapid Traverse:

48 m/min

Maximum Workpiece:

413 x 267 x 215 mm


PS-Series

Table:

920 x 510 mm

X:

660 mm

Y:

510 mm

Z:

460 mm

Rapid Traverse:

X : 48,000 mm/min
Y/Z : 36,000 mm/min

Spindle Taper:

BT40 (Opt. HSK-A63)


Table:

1,300 x 510 mm

X:

1,050 mm

Y:

510 mm

Z:

460 mm

Rapid Traverse:

X : 48,000 mm/min
Y/Z : 36,000 mm/min

Spindle Taper:

BT40 (Opt. HSK-A63)
